Does anyone help me with end-of-life modeling in OpenLCA 1.7?

What is the procedure?

Thanks a lot!

Rosa

in openLCA by (180 points)
edited by

1 Answer

+3 votes
by (22.6k points)
selected by

Best answer

The procedure of end-of-life (EoL) modelling in openLCA varies among databases. In general, there are two different approaches.

1) Opposite Direction Approach (ODA)

2) Material Flow Logic Approach (MFLA)

Opposite Direction Approach (ODA)

This is actually quite simple. You do not even need a waste flow. The ODA (double-negative) approach can be implemented under use of a product flow as a quantitative reference of the waste treatment process. Just think a moment what a 'quantitative reference' in openLCA actually is. The quantitative reference is the main output/product of a process. Hence, a process transforms all inputs into one or more outputs (the latter in the case of co-products) whilst emitting emissions (e.g. green house gases, toxic substances, etc.). However, when dealing with end-of-life or treatment you do not really have a main output besides emissions or in other words elementary flows ("material or energy entering the system [...] that has been drawn from the environment without previous human transformation, or material or energy leaving the system [...] that is released into the environment without subsequent human transformation" Source: ISO 14040:2006). A waste treatment does not produce a product flow but only emissions. Therefore, you want to put the quantitative reference on the input side. Since (for a product flow) this is not possible in openLCA, you are doing this mathematically by introducing a negative sign in front of the quantitative reference. Analogously, the quantitative reference of the waste treatment process has to be added to the input side of the waste generating process with a negative sign.

Waste generating process: The waste (non-waste flow) is a negative input
Waste treatment process: The waste (non-waste flow) is a negative output

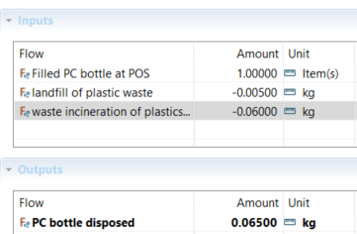

A screenshot of a waste generating process:

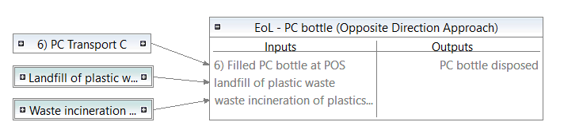

A screenshot of the model graph:

Material Fow Logic Approach (MFLA)

Waste flows were introduced with openLCA 1.7 and allow following the physical direction of material flows. They render the ODA approach redundant (at least if you are working with a database that follows the MFLA approach e.g. GaBi (at the time of writing)) Waste flows can be assigned as a quantitative reference albeit being an input of a waste treatment process. Analogously, waste flows can remain on the output side of the waste generating process.

Waste generation process: The waste (waste flow) is a positive output
Waste treatment process: The waste (waste flow) is a positive input

A screenshot of a waste generating process:

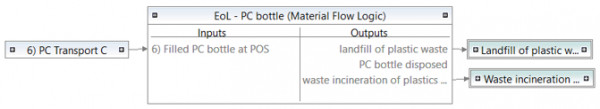

A screenshot of the model graph:

Concluding remark:

There is no definite answer on which waste modelling approach in openLCA works best. In fact, if implemented correctly, both approaches will lead to the exact same result. It's probably best if users follow the approach that is used in the background database with which they are working (e.g. ODA in ecoinvent and MFLA in GaBi). To find out which approach is used, open waste treatment processes and  check whether waste flows (MFLA) are utilised or not (ODA). We will also soon publish an improved version of the PC/PET bottle tutorial on https://openLCA.org including end-of-life modelling.
I hope this helps.

by (280 points)
Jonas, this is extremely helpful. Thank you!

I have one follow up question. In ecoinvent, it seems that all of the waste treatment processes (following the ODA approach) should have a negative reference flow. I am using the nexus version of ecoinvent 3.5, and there are several treatment processes that have +1 as an output. For example:

"treatment of waste paperboard, unsorted, sorting | waste paperboard, sorted | Cutoff, U"
"treatment of waste glass from unsorted public collection, sorting | glass cullet, sorted | Cutoff, U"

Looking at the processes in ecoquery, it seems like they should have negative reference flows.

What am I missing, or is this an error? Thanks for your help!

Best,

Nicole
by (22.6k points)
That's a good question! I didn't find the specific treatment of waste paperboard process that you are referring to but the one for glass.

I think the reason for the positive quantitative reference is, that the process is actually creating a new product 'glass cullet, sorted' that is used elsewhere in the database for production of packaging glass (just double click on the flow and open the section "Used in processes - > Consumed by").

The treatment of glass is done before in other processes (red ones: https://openlca.org/wp-content/uploads/2019/04/graph.png) that are indirectly linked via the market processes (which is also why all the waste inputs are negative).
by (280 points)
edited by
Thank you for the response, Jonas.
...
